OKI C942DP+ CMYK + White & Color-on-Color Envelope Print System

Oki

Regular price $0.00

OKI C942DP+ CMYK + White and Color-on-Color Envelope Printers

With its unique ability to print brilliant colors on dark colored media using white toner under CMYK, the C942DP+ is the ideal choice to extend your in-house color printing capabilities from the expected to the extraordinary.

Brilliant color: Print in a full range of CMYK plus solid white

The C942DP+ takes advanced color to a new level with single pass white-under CMYK printing.Unique in the market, this innovative high-definition printer increases flexibility and delivers stand out results.

  • Print in a full range of color plus solid white
  • Accurately places white under CMYK to produce vibrant color output on dark and transparent media in a single pass

Press quality: Fast digital turnaround, no setup costs

Requests for short-run envelope production (runs of 5,000 or less) used to be a headache for print shops large and small: not economical for traditional offset printers, too much trouble even for small digital print shops. With the C942DP+ Envelope Print System, a formerly under-serviced market represents an opportunity to expand your business.

  • Cost-effective means to produce short runs
  • Little overhead or job start-up costs
  • Full control over timing

Print for profit: Extend in-house color printing capabilities

The C942DP+ enables you to extend your in-house color printing capabilities from expected to the extraordinary. It’s a new breed of print devices, perfect for short runs and, with a duty cycle rated at up to 300,000 pages per month, rugged enough for longer runs. Add an optional EFI Fiery C9 Server or Harlequin DirectPrint RIP and offer your customers short-run, targeted variable data printing (VDP) with accurate, consistent color.

  • Expand short-run offerings
  • Offer variable data printing in high-definition color
  • Accurate color through standard print driver or optional RIP provides consistent color output
  • Designed with multi-shift commercial print shops in mind: ease of operation, maintenance and adjustment

Media versatility: Print on envelopes in a variety of sizes and weights

The C942DP+ robust media support enables printing on a wide array of envelope sizes and weights.

  • Straight-through print path handles envelopes and ultra-heavy card stocks/post cards up to 360 gsm
  • Raised and angled envelope stack ensures smooth separation of typically challenging media
  • Envelopes as small as 2.5” x 4.5” and as large as 13” x 15”
Print Speed CMYK/Mono All Models: Up to 500 Com 10 envelopes in under 12 minutes; 50 ppm Letter-size sheets, 27 ppm Tabloid sheets
CMYK + White C942DP+/C941DP+: Up to 45 ppm Letter, 24 ppm Tabloid
CMYK + Clear C941DP+ only: Up to 17 ppm Letter
Duty Cycle Printers 300,000 pages max per month
Print Quality Resolution Up to 1200 x 1200 dpi; ProQ 1200 x 600 x 16 levels
Memory RAM (Standard/Max) 2 GB
Processor 1.2 GHz ARM CPU
Compatibility Printer Languages Adobe® PostScript 3™, PCL® 6, PCL 5c, XPS®
Connectivity High-speed USB 2.0, 10 Base-T/100 Base-TX/1000 Base-T Ethernet
Operating Systems Windows® 8, Windows 7, Windows Vista® , Windows XP, Windows Server 2012, Windows Server 2008, Windows Server 2008 R2, Windows Server 2003; Mac® OS 10.3.9 – 10.9
Network Protocals TCP/IP, EtherTalk
Color Features/Solutions Standard OKI PostScript®driver supports trapping; Embedded ICC Profile-based workflow; Simulations for SWOP, ISO Coated, Japan Color; PDF Direct Print; PS Gamma Adjust; and Color Correct
Optional External PC-based RIP: Global Graphics® Harlequin® DirectPrint RIP or Fiery® C9 Server with Command WorkStation® from EFI®
Media Handling Media Sizes Envelope Feeder: A2, A6, A7, A8, A9, A10, Invitation, Com-9, Com-10, Monarch, 6x9, 7x9, 9x12, 10x13, 10x15; Custom size range: 2.5" x 4.5" to 13" x 15" Paper Trays: Tabloid extra (12" x 18"), Tabloid (11" x 17"),  Legal, Letter, Executive, 3" x 5" Index cards
Medial Weight Trays 1 & 2 and optional High-Capacity Feeder: 52–320gsm; Multi-purpose Tray/Feeder: 80–360gsm
Media Capacity Multi-purpose Tray/Feeder Up to 600 Com-10 envelopes
Trays 1 & 2 Up to 530 sheets each
High-Capacity Feeder (Optional) Up to 1,590 sheets (3 trays, 530 sheets each)
Media Output Face Down max 610 Sheets
Face Up 500 envelopes via Stacking conveyor
Environmental Size (WxDxH) Printer: 27.5" x 24.6" x 25.2" (699 mm x 625 mm x 640 mm) Printer/Feeder/Conveyor: 103.5" x 24.6" x 48.6" (2629mm x 625mm x 1234mm)
Weight C942DP+/C941DP+ (Printer): 244.4 lb. (110.8 kg) including consumables C931DP+ (Printer): 215.2 lb. (97.6 kg) including consumables Feeder: 86.4 lb. (39.2 kg); Conveyor: 60.6 lb. (27.5 kg)
Temperature/Humidity 50˚– 90˚F (10˚ – 32˚C) / 20% – 80%RH
Power Consumption Printer: Active 1600W max. /1100W avg.; Standby avg. 40W; PowerSave mode 30W or less; Sleep mode 4W or less; Auto Shutoff 0.4W or less. Feeder/Conveyor: 180W max.
Noise Levels Printer: Active 57dBA or less; Standby 34dBA or less; PowerSave mode – Inaudible
Warranty Limited C942DP+/C941DP+: 3-Year On-Site, 2nd Business Day Service3 ; 5-Year Digital LED Printheads C931DP+: 2-Year On-Site, 2nd Business Day Service3 ; 5-Year Digital LED Printheads
  • New design: built "from the ground up"
  • 4-Color digital printing (CMYK + White & Color-on-Color)
  • Incredibly sharp text; rich, saturated press-like colors
  • Broadest range of envelope sizes (through Feeder): A2 to 13" x 15"
  • Broadest range of media sizes (through Printer): 3" x 5" cards to 52" banners
  • Straight-through print path handles envelopes and ultra-heavy card stocks/postcards (up to 360 gsm) with ease

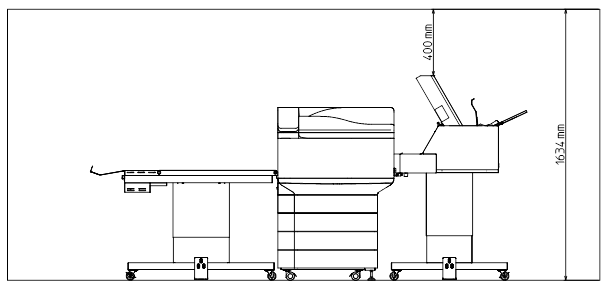

Space Required Side View


OKI C942DP+ CMYK + White & Color-on-Color Envelope Print

Space Required Top View

OKI C942DP+ CMYK + White & Color-on-Color Envelope Print
