Horizon Rotary Die Cut Machine RD-4055

Standard Horizon

Regular price $0.00

Horizon Rotary Die Cutting Machine

Improve your die-cutting process! Easy change over and simple operation. Allows flexibility across a wide range of product.

The Rotary Die-Cutter is designed to meet the growing demand for short-run product. Die-cut, crease, perforation, slit, hole punch and round corner in various substrates up to 0.5 mm / 0.019" (only for die-cutting) thickness for digital and offset printed sheets.

One pass processing means that feeding, die cutting and separating are achieved in one pass at a speed of 6,000 cycles per hour. Uniquely designed to servo motor controlled "Repeat Register" feature allows multiple-up applications from single-up die to minimize die cost. Its simple and easy operation reduces costly labor steps and increases productivity with easy setup and operation versus steel rule or mechanical dies.

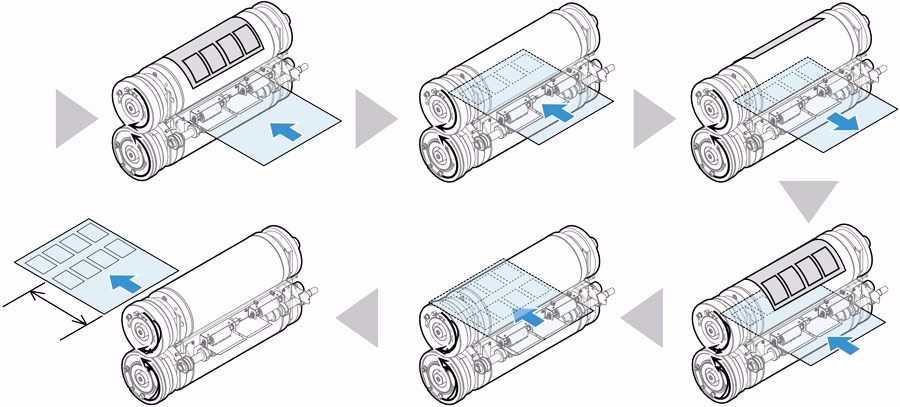

Reduce Die Cost with the RD-4055 Repeat Register Function

Horizon Rotary Die Cut Machine RD-4055

Product Features

  • Rotary Die-Cut System (Max. 400 x 550 mm / 15.74" x 21.65") - Rotary Die-Cutter designed to meet the growing demand for short run product.
  • Flexible Substrate - Die-cut, Crease, Perforation, Slit, Hole punch and round corner in various substrates up to 0.5mm / 0.019" (only for die-cutting) thickness for digital and offset printed sheets.
  • One Pass Processing - Feeding, die cutting and separating are achieved in one pass at a speed of 6,000 cycles per hour.
  • Save the Cost of Making Die - Uniquely designed servo motor controlled "Repeat Register" feature allows multiple-up applications from single-up die to minimize die cost.
  • Simple and Easy Operation - Reduces costly labor steps and increases productivity with easy setup and operation versus steel rule or mechanical dies.
  • Deep Pile Feed Capacity - 19.8"
  • Auto Size Setting - Up to 14.8" x 20.7" Sheet Size
  • Auto Trim Waste Removal with mechanical strip and pneumatic knock down is available with SPC-4055 trim waste separator
Applications:
  • Greeting/Note Cards
  • Playing Cards
  • Coasters
  • Place Cards
  • Door Hangers
  • Coupons & Tickets
  • Boxes & packaging
  • stickers (Pressure Sensitive, Gum Back, Static)
  • Bottle & Merchandise Labels
  • Pocket Folders
  • Unique Mailers
View the Technical Specs Tab for a diagram of the RD-4055 Sheet Flow. Additional information/diagrams available under the Extended Information Tab.
  • Up to 6,000 cycles per hour
  • Sheet sizes up to 15.74" x 21.65"
  • Die-cut, kiss-cut, crease, slit, perforate, hole punch, and round corner
  • Flexible substrate
  • One pass processing
  • Save the cost of making die
  • Simple and easy operation
RD-4055 Sheet Flow Diagram

Horizon Rotary Die Cut Machine RD-4055

RD-4055 Technical Specs

Standard RD-4055 Rotary Die Cutter
Sheet Feeding System Vacuum Belt Feed
Sheet Size (Before Processing) Max. 400 x 550 mm / 15.74" x 21.65"
Min. 200 x 275 mm / 7.8" x 10.8

Finished Size

*The size may be limited depending on shape and sheet weight range

With Separator Min. 200 x 275 mm / 7.8" x 10.83"
Min. 50 x 80 mm / 1.97" x 3.15"
Without Separator Max. 376 x 526 mm / 14.8" x 20.7"
Min. Depending on Shape
Processed Material Normal Paper, Coated, Paper, Cardboard
Material Thickness 127.9 to 400 gsm
Die Cutting : Max. 0.5 mm / 0.019”
Creasing : Max. 0.4 mm / 0.015”
Feeder Pile Height 500 mm / 19.68"
Upper Cutting Blade Height 0.6 mm or 0.8 mm / 0.0236" or 0.0315"
Production Speed 6,000 cycles per hour
Voltage Frequency Single Phase 200 to 240 V, 50/60 Hz
Rotary Die-Cut System RD-4055 Features
